Concrete Pump Hose
Concrete pump hose –delivery hose and end hose
1. Our hose are able to use 20,000 cubic meter, the inside of hose is high abrasion resistant.

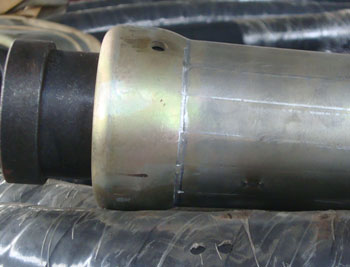

2. Integrated hose end and inner wall harden, prolong work life.
3. Hose end can be galvanized.
Technical Data:

ID (mm)	WT (mm)	OD (mm)	W.P. (bar)	B.P. (bar)	Bend Radius (mm)	Weight ( Kg/m)
51.0	9±0.75	68±1.5	85	240	200	2.8
64.0	10±0.75	85±1.5	85	200	250	4.0
76.2	12.9±1	102±1.5	85	200	270	5.8
89.0	13.5±1	116±1.5	85	200	290	7.5
101.6	14.2±	130±1.75	85	200	300	8.13
115.0	14±1	143±2	85	200	320	9.21
127.0	16±1	158±2	85	200	360	11.33
150.0	18±1	186±2	85	200	570	14.85
Other sizes and types upon request

Name	Concrete rubber hose –delivery hose and end hose
Size	2''/2.5''/3''/3.5''/4''/4.5''/5''/6''or according to customer's requirement.
Length	1.0m—25m
Reinforcement	Steel wire, tire cord or fabric
Work Pressure	30 bar to 120 bar
Burst Pressure	120 bar to 380 bar
Service Life	20,000 cubic meter
Hose End	Galvanized, inner wall harden
Application	Used in Conveying concrete, slurry, sand, dust, stone, etc.
